Tractor 15' Flex Wing Rotary Cutter | Blue Diamond
BD-TR-CTR-15FT
limited quantity available
LIMITED TIME FREE SHIPPING!
10% discount applied.
Sale ends January 31, 2025
DETAILS
With its heavily braced deck and triple spring suspension, this Flex-Wing Rotary Cutter is designed for heavy-duty applications such as weeds, grass, and brush up to 4” diameter. Designed for use with tractors as small as 55 hp, the cutter has a 180” cutting width. The cutter uses three spindles with two free-swinging blades each, to reduce the shock of hitting a stationary object. Slip clutches protect the gearboxes and driveline from damage. Standard equipment includes driveline shields and clutch shields. Front and rear chain discharge shields and a towing safety chain are standard.
| MODEL | 15' FLEX WING CUTTER |
|---|---|
| MINIMUM HORSEPOWER | 55 HP |
| HITCH | Swivel Pivot |
| DECK THICKNESS | 7 GA |
| BODY TYPE | 9.5” |
| SIDE SKIRT MATERIAL | 1/4” x 12” |
| UNDERNEATH DECK | Heavily Braced |
| OUTBOARD GEARBOX | 190 hp |
| SPLITTER GEARBOX | 235 hp |
| GEARBOX | 540 RPM |
| BLADES | 1/2” x 4” |
| BLADE TIP SPEED | 17,135 FPM |
| BLADE OVERLAP | 6 1/2” |
| BLADE CARRIER WARRANTY | 5 year |
| WING FLEX | 88 degrees up – 22 degrees down |
| GEARBOX WARRANTY | 5 yr. limited |
| CUTTING WIDTH | 180” |
| OVERALL WIDTH | 188” |
| OVERALL LENGTH | 189” |
| OVERALL WEIGHT | 5,175 lbs |
| CUT HEIGHT | 2” – 15” |
| CUTTING CAPACITY | Up to 4” |
| INPUT PTO | ASAE CAT 8 Constant Velocity |
| WING DRIVE PTO | ASAE CAT 6 |
| SKID SHOES | Replaceable |
| CHAIN SHIELDS | Standard |
| TOWING SAFETY CHAINS | Standard |

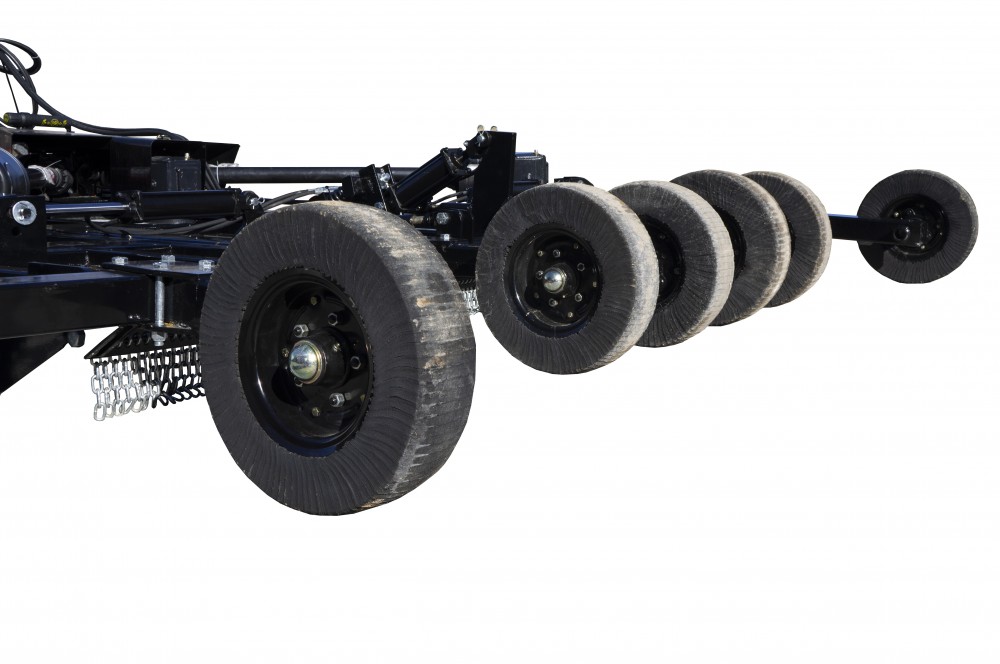

| WHEEL TYPE | 5 Lug Laminated Standard |
| BLADE CARRIERS | 3/8” Formed Plate With 5/8” x 10 ” x 23” Blade Bar |
features
- Protected gearboxes and drivelines
- 180” cutting width
- 2-year warranty
- 4” Cut Capacity
- Comes standard with slip clutches and chain guard
- Made in the USA
