Power Rake - Heavy Duty | Blue Diamond
BD-HD-PR
limited quantity available
LIMITED TIME FREE SHIPPING!
10% discount applied.
Sale ends December 31, 2024
DETAILS
This Heavy Duty Power Rake follows close on the heels of our previously released Severe Duty model. This lighter unit is suited to smaller frame skid steers and walk behind machines. The bolt-on mount allows greater flexibility for rental companies and dealers to have the correct model for the right machine, with mounts offered for mini and full size skid steer machines. The working width of the machines in the 10 degree angle is 3″ less than the rotor width, and the 20 degree angle is 6″ less. For example, the 72″ rake has a working width of 69″ in the 10 degree setting, and 66″ in the 20 degree setting. This is true for all of our rakes, no matter the size family. Optional skid shoes are available for purchase separately.
| MODEL | WORKING WIDTH STRAIGHT |
WORKING WIDTH ANGLED |
OVERALL WIDTH |
WEIGHT |
|---|---|---|---|---|
| 48”, Replaceable Teeth | 48" | 42" | 58" | 528 LBS |
| 48”, Fixed Teeth | 48" | 42" | 58" | 526 LBS |
| 60”, Replaceable Teeth | 60" | 52" | 70" | 580 LBS |
| 60”, Fixed Teeth | 60" | 52" | 70" | 584LBS |
| 72”, Replaceable Teeth | 72" | 66" | 82" | 600 LBS |
| 72”, Fixed Teeth | 72" | 66" | 82" | 714 LBS |
features
7” diameter drum with 1.5” teeth
Optional skid shoes can be purchased
Chain drive unit for increased torque
Pre-lubricated chain for easy service
Spindles on drum are 1 3/8” diameter in greaseable bearings
Drum widths: 48”, 60” and 72”
Overall width 9” more than drum width
7/8” greaseable axles on wheels
Airless tires
Flip up wheels
1.25” spindles with adjustable height
Manual Angle

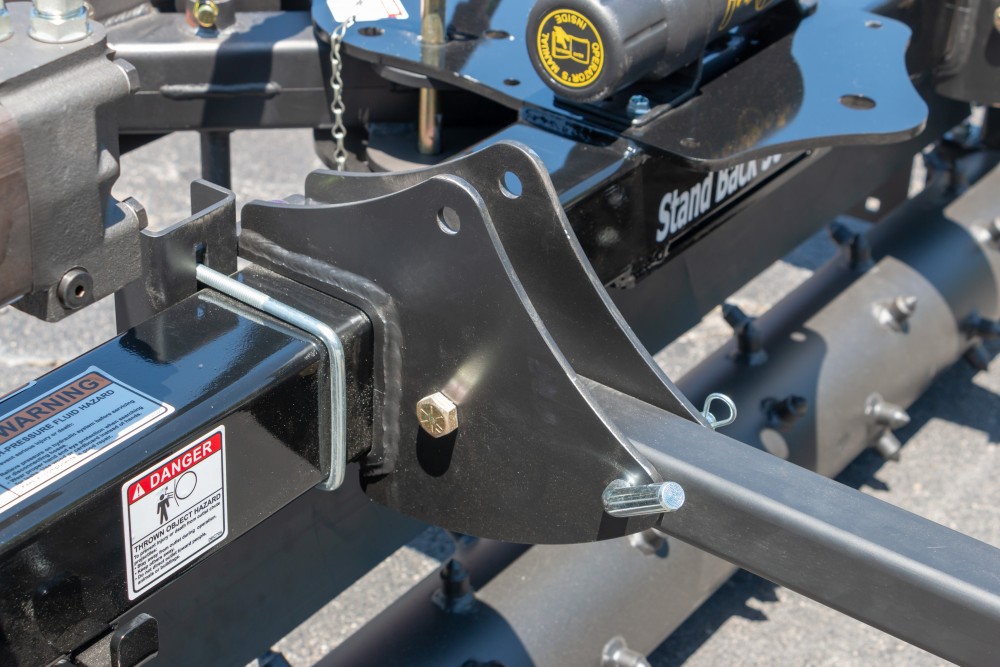

Bolt-on mount
Made in the USA
1 year warranty
